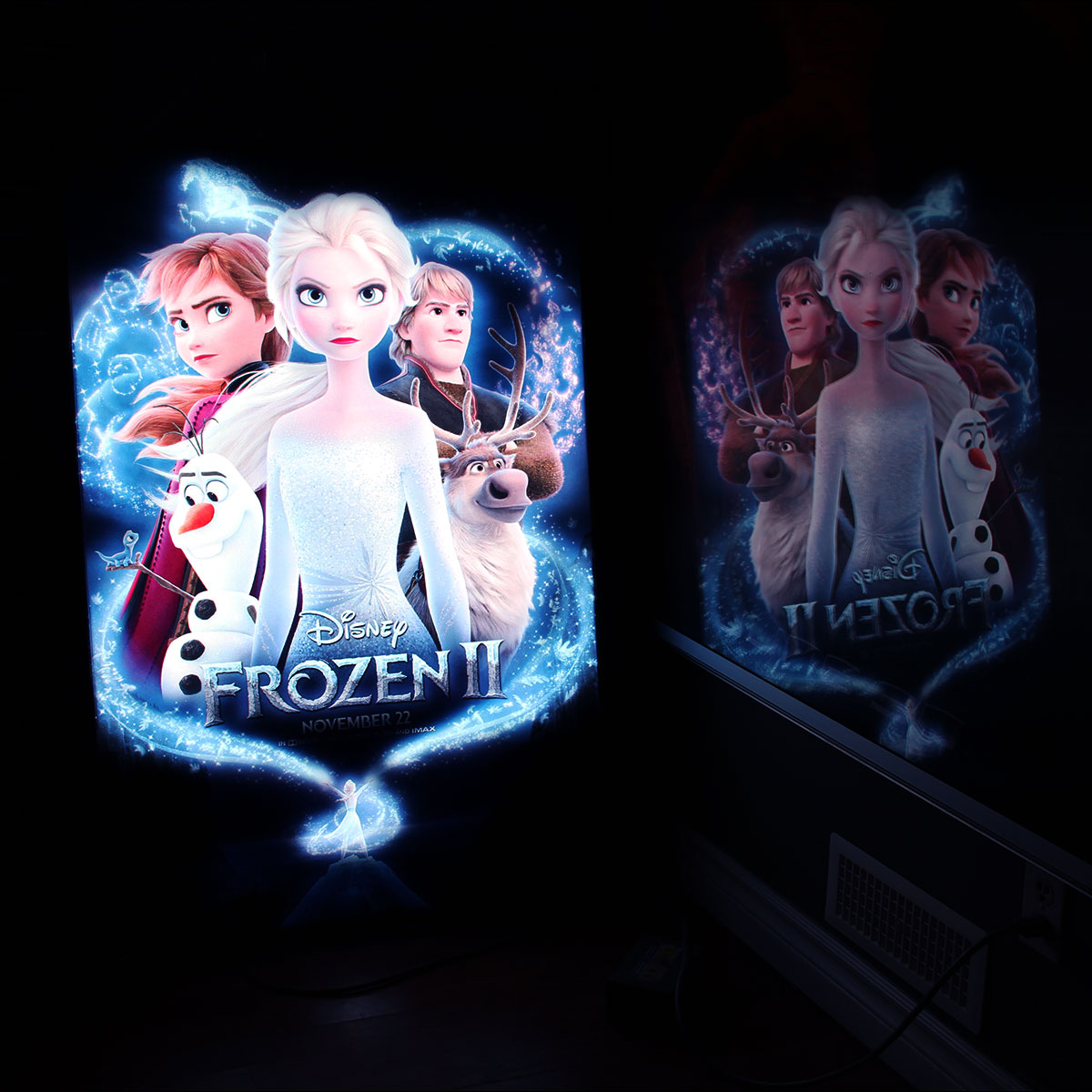

LED Light Box
KB25 Series

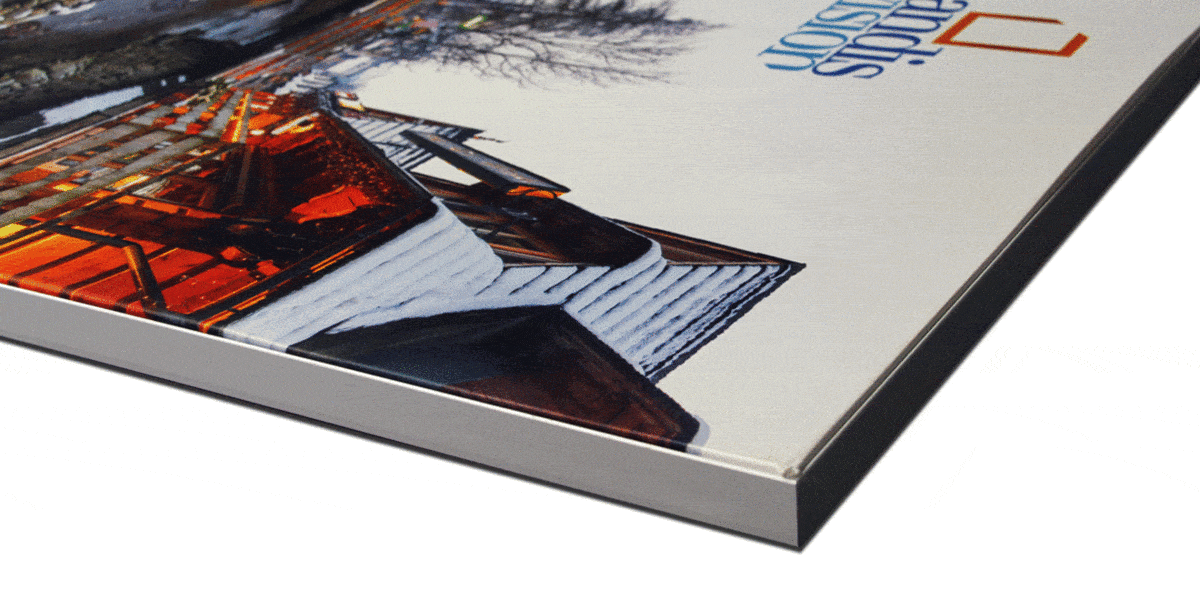

" The Frameless Fabric Light Box -
a LED light box with frameless fabrics
and high brightness "
High brightness, low profile, lightweight and versatile best describes the Bandis Vision ES Series light box. Featuring an optical grid acrylic sheet with LED edge light strips, the ES Series is a thin, light and stylish choice for all types of installations.
In order to meet various brightness levels effects, the ES Series offers a range of different white LED temperatures from 3000k to 12000k.
It comes with a standard anodized aluminum front loading frame with optional powder coat colors available upon request.
Mounting Option
Hanging Wire
D-Ring
Z-Bracket
Key-Hole
Direct-Screw
Specification
20mm / 0.78in
10mm / 0.39in
21mm / 0.82in
20mm / 0.78in
21mm / 0.82in
15mm / 0.59in
22mm / 0.86in
20mm / 0.78in
Min. 4” X 4” to Max. 48” X 96”
Anodized Silver, Black, Powder Coating
1ch, 2ch, 4ch
Lux=(3600*L) ÷ ft L=total length of LED in ft
≥75,90
3000K, 4000K, 5000K, 6500K, 12000K
12V (24V Available)
0.36A / LED Linear ft (insert Size)
4.44W / LED Linear ft (Insert Size)
5.5mm X 2.1mm DC Plug
Hanging wire, D-ring, Z-Bracket, Key-Hole, Direct Screw (#6 screw)
-20°C (-4°F) ~ 45°C (113°F)
W= 0.95kg/ft + 0.12kg/L L=Total length of frame in ft (± 10%)
W= 10.2kg/m + 0.12kg/L L=Total length of frame in m (± 10%)
