LED Channel Letter
Front Lit Channel Letters
" illuminated from front of the letters "

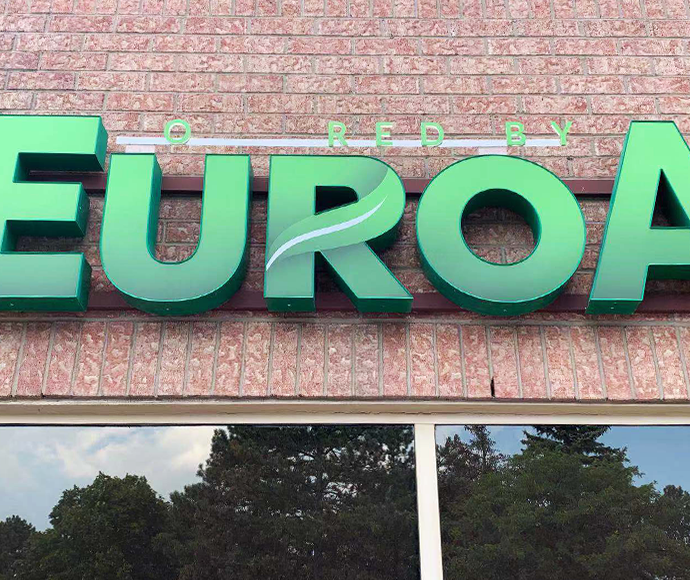

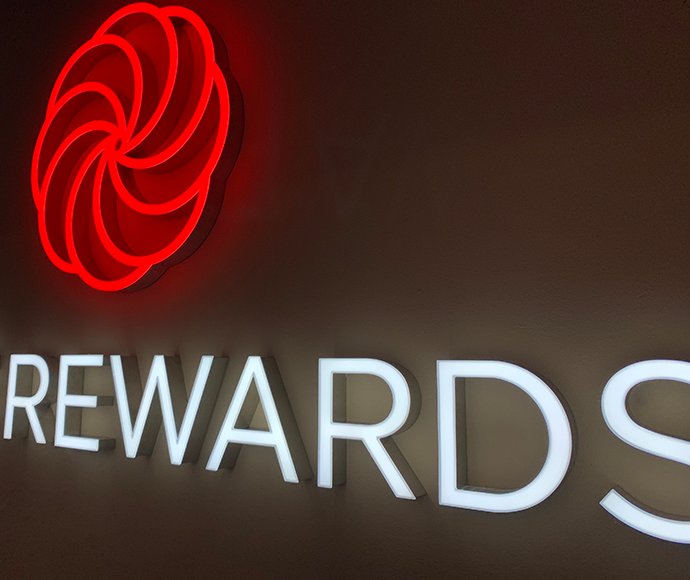

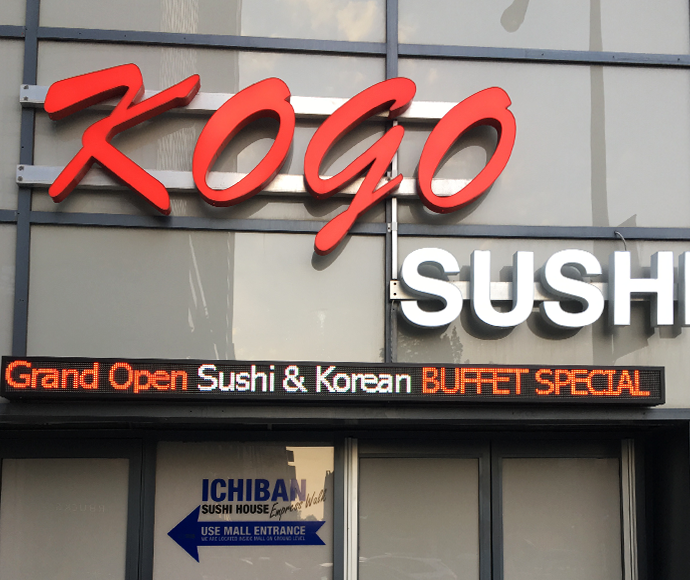

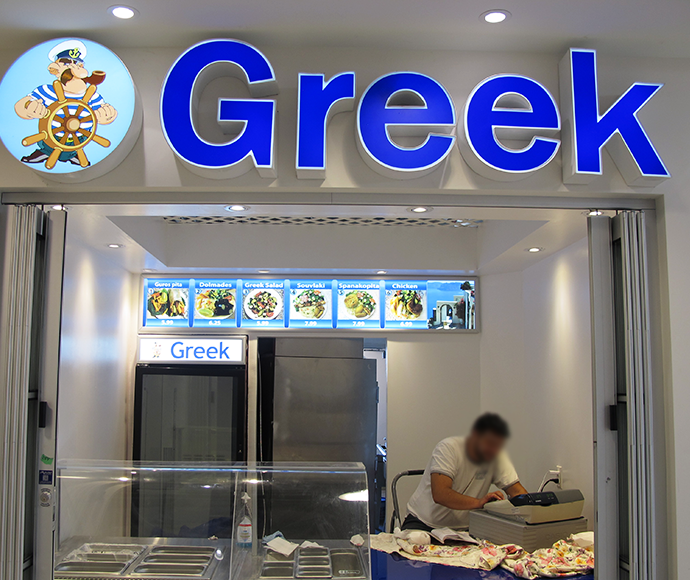

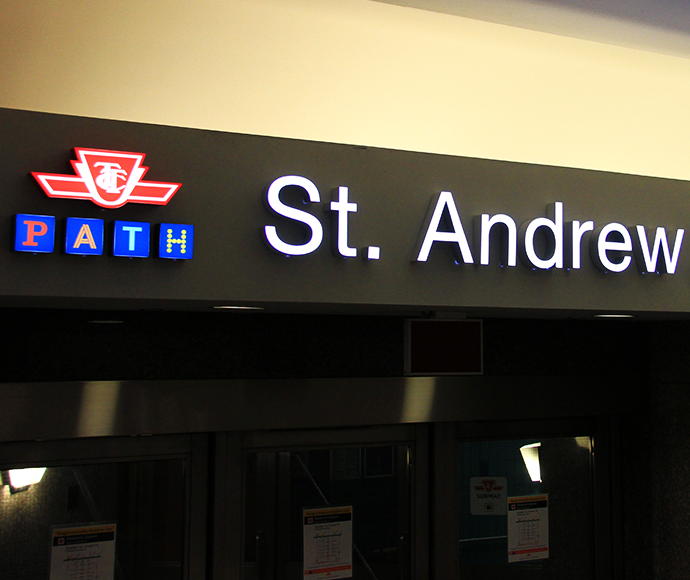

Front-illuminated channel letters are one of the most popular and cost effective sign options on the world market. Often referred to as standard channel letters this form of lettering is widely used in both indoor and outdoor applications. All our front-illuminated channel letters can be flush-mounted or raceway mounted depending on your specific installation requirements and are available in a variety of sizes, fonts & colors.
Letter Material
+ Steel
+ Stainless Steel
+ Aluminum
Face Style
+ Trim Cap
+ Trimless Acrylic Face
+ Trimless Resin
Mounting Options
Flush
Raceway
Stud
Custom
Specification
20mm / 0.78in
10mm / 0.39in
21mm / 0.82in
20mm / 0.78in
21mm / 0.82in
15mm / 0.59in
22mm / 0.86in
20mm / 0.78in
Min. 4” X 4” to Max. 48” X 96”
Anodized Silver, Black, Powder Coating
1ch, 2ch, 4ch
Lux=(3600*L) ÷ ft L=total length of LED in ft
≥75,90
3000K, 4000K, 5000K, 6500K, 12000K
12V (24V Available)
0.36A / LED Linear ft (insert Size)
4.44W / LED Linear ft (Insert Size)
5.5mm X 2.1mm DC Plug
Hanging wire, D-ring, Z-Bracket, Key-Hole, Direct Screw (#6 screw)
-20°C (-4°F) ~ 45°C (113°F)
W= 0.95kg/ft + 0.12kg/L L=Total length of frame in ft (± 10%)
W= 10.2kg/m + 0.12kg/L L=Total length of frame in m (± 10%)
